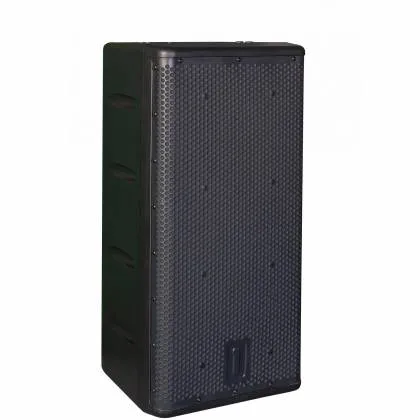

One Systems 212.HC-Black Platinum Hybrid Series Loudspeakers - Black: A compact loudspeaker array offering superb performance and smooth, accurate sound.

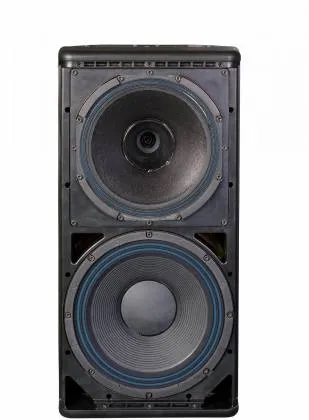

The 212.HC is a compact dual 12" array system that provides excellent intelligibility, superb musical performance and high output capability. The 212.HC's driver complement consists of a One Systems' 12" woofer with a large-format 4" voice coil and a 12" woofer with a large-format, coaxially mounted compression driver. Utilizing these powerful 12" drivers in tandem at low and mid-frequencies provides high output capability while the large-format coaxially-mounted HF driver ensures beautifully detailed mids and highs with no horn coloration. This advanced design aligns the drivers producing point-source imaging. The result is a smooth, accurate, detailed-sounding speaker system with high power handling and excellent projection capability in an impressively small-sized direct-weather enclosure. All 212.HC's rigging components are made of 316 marine-grade stainless steel. Thanks to its range of suspension points, accessories and its 70-degree conical coverage pattern, the 212.HC can be installed horizontally or vertically for various applications. For any outdoor or general-purpose indoor applications, the 212.HC is an ideal solution for high-fidelity sound quality in large spaces or in high noise environments.
Features
- 2 Element 12" Vertical Array
- Marine-grade (316) stainless steel rigging points
- Very High SPL extended bandwidth response
- IEC 529 IP 45 (IP 56 with vent plugs)
- Optimized for high-intelligibility and vocal articulation
- Multiple M10 rigging points
- Pan and Tilt (PT76/M), Pole Mount (PM4/M) rigging brackets
- U bracket available
Specifications
- Frequency Response: 75Hz - 16kHz
- Coverage Pattern: 60 degrees conical
- Passive Crossover Frequency: 1800 Hz
- Inputs: 4-position barrier
- System Sensitivity (1 Watt / 1 Meter): 99dB
- Power Handling: 1200 watts Continuous, 2400 watts Program, 4800 watts Peak
- Nominal Impedance: 4-ohms
- Low Frequency: ONE SYSTEMS 12I/O
- ONE SYSTEMS 12CXVII
- High Frequency: Modified large format compression driver
- EASE 4.0 data: www.ONESYSTEMS.com
- Suspension/Mounting Points: 15 each M10
- Weather Performance: IEC 529 IP 45 (IP 56 with vent plugs installed)
- Dimensions, mm: 749 x 368 x 414
- Dimensions, in: 29.5 x 14.5 x 16.3
- Net Weight: 32.8 kg (72 lb.)
One Systems Platinum Hybrid Series Loudspeakers: A loudspeaker system suited to large and high-noise environments.
