PRODUCT DETAILS
Description

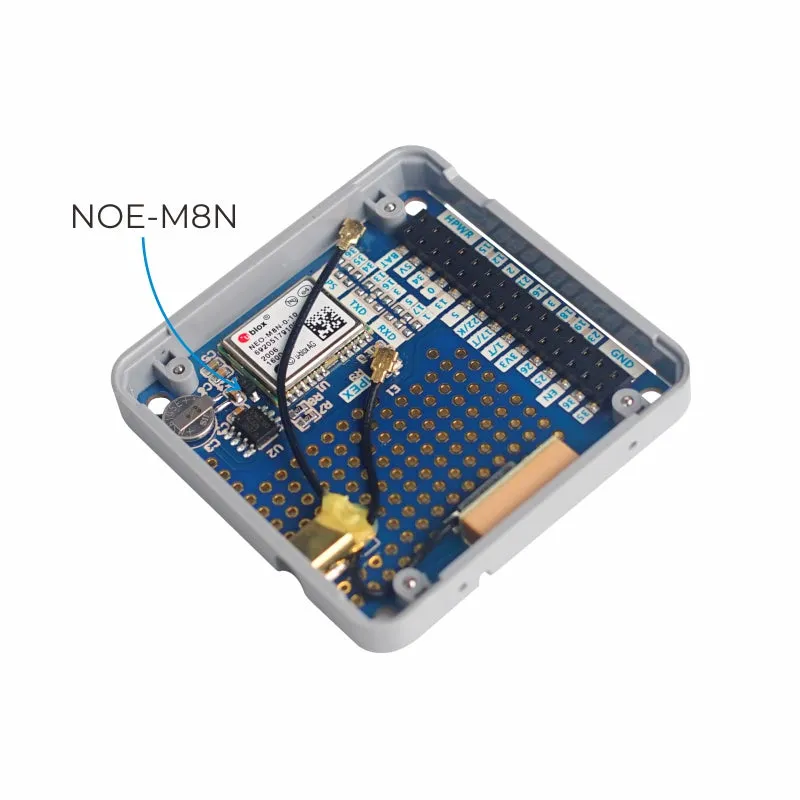

GPS is build with u-blox M8 NEO-M8N module with an integrated built in active antenna.
The NEO-M8 series provides high sensitivity and minimal acquisition times while maintaining low power usage.
The NEO-M8N integrates a 72-channel M8 GNSS engine that supports multiple GNSS systems ( Beidou, Galileo, GLONASS, GPS / QZSS ) and able to receive 3 GNSS systems simultaneously.
The series communicate protocol between M5Core and GPS is UART, physically connected via UART2 (GPIO16, GPIO17)
If you want to change the UART baud-rate, please check here ( )
Notice: GPS signal can only be found outdoors
UART protocol: baud rate (default is 9600bps), data bit (8 bits), start bit (1 bit), stop bit (1 bit), Parity (none)
Product Features
- Operating temperature: -40 ~ 80 °C

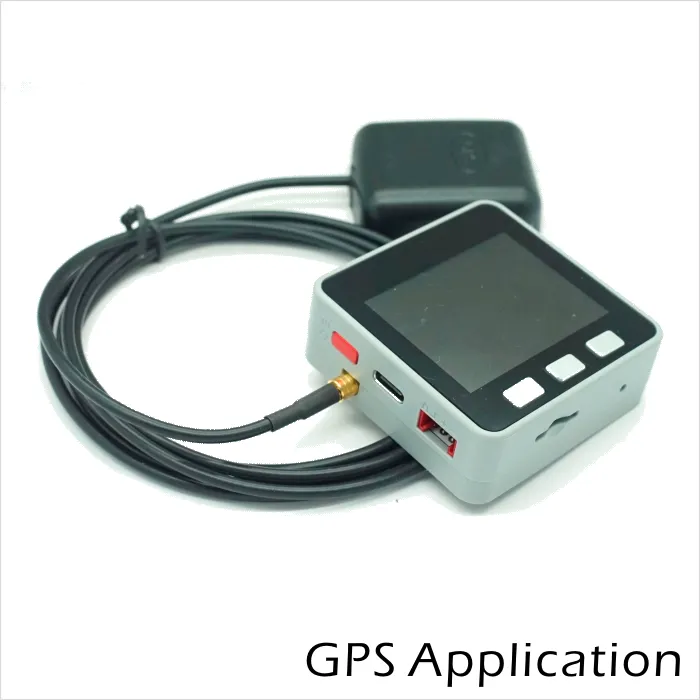

- Antenna type: built-in ceramic antenna and external antenna
- external Antenna port: SMA
- Can receive data from 3 GNSS systems concurrently
- Horizontal position accuracy: minimum 2.5m
- GPS module (NEO-M8N) Built-in Flash, so that you can upgrade firmware via
- Supported protocols: NMEA, UBX, RTCM
- Industry leading -167dBm sensitivity
- Backward compatibility with NEO‐7 and NEO‐6 series

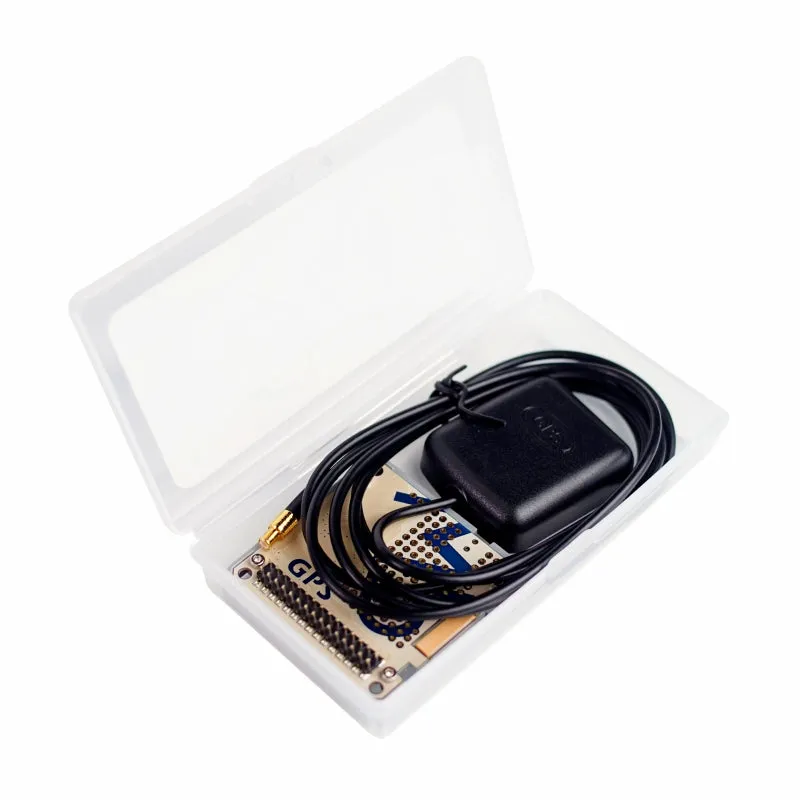

Include
- 1x GPS Module
- 1x external Antenna(cable length : 1 meter)
Applications
- GPS-based logistics tracking management
- Driverless car positioning
Specification
| Resources | Parameter |
|---|---|
| Net weight | 43g |
| Gross weight | 73g |
| Product Size | 54*54*13mm |
| Package Size | 125*68*23mm |
